【 Roll up motor + Temperature controller】All-In-One kit, automatic agriculture with Thermostat, automated the work and enjoy more free time.
【 100W Power Roll Up Motor 】Works on OD20mm or OD25mm roll tube.Roll up film tube length up to 360 ft, max 12.9 ft height. Safe DC 24V 2.8RPM greenhouse roll up motor with limit switch.
【 Best for 】Installing on top of the hoop greenhouse, control 2 motors for even venting.

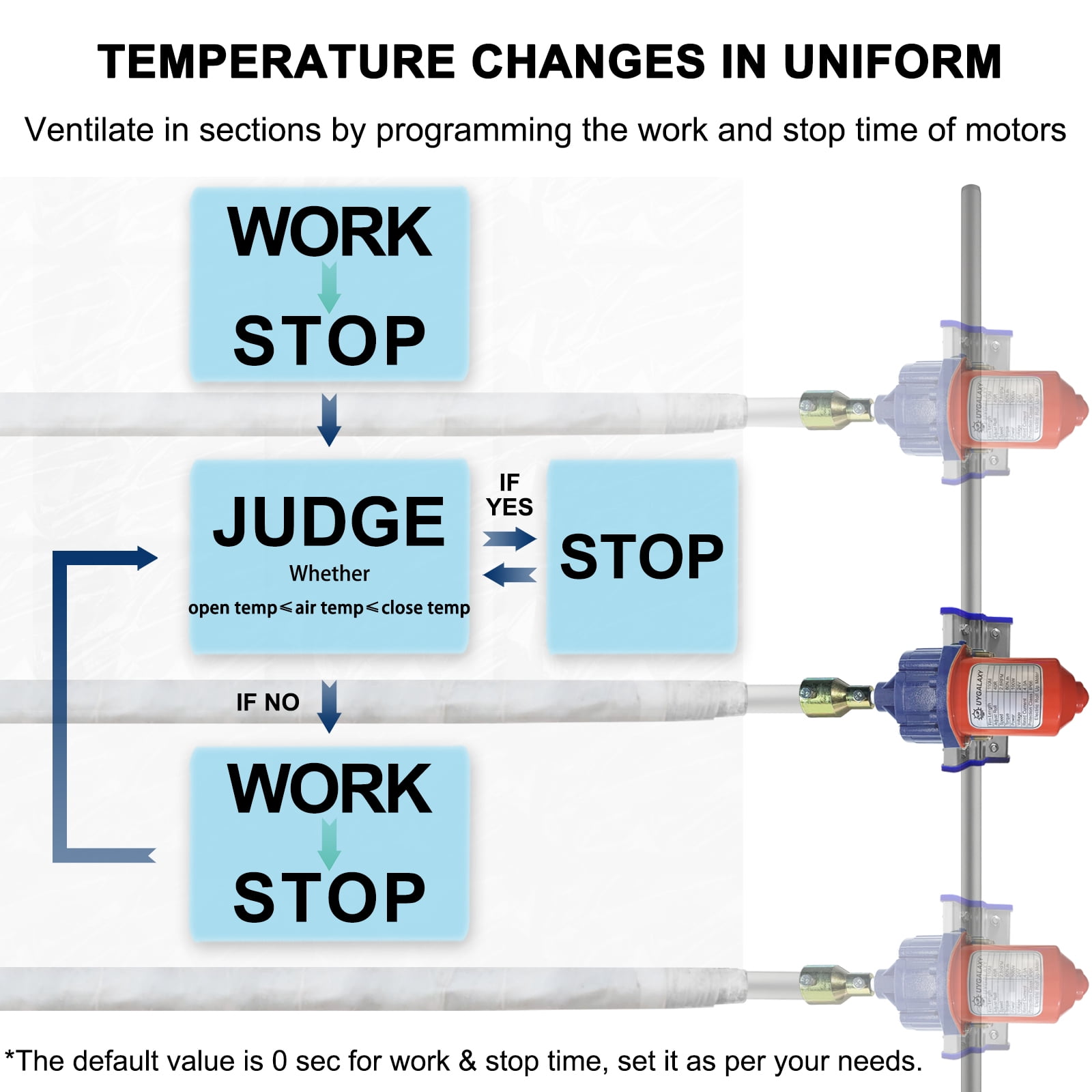

【 Easy Use 】Use the manual mode to test and set the limit switch on motors; Use auto mode to make it repeat as per temperature setting.
【 Wide Use 】Water Resistance motors. Suitable for breeding greenhouses, chicken coop greenhouses, flower greenhouses, fruit greenhouses.
【 1 Year Warranty 】Lifetime technical support if any question or concern.
The electric roll-up motor for greenhouse is widely used in Greenhouse. With temperature function controller to control 24V motor for forward , Reverse and stop.
For controlling the electric roll-up motor for ventilation, which is used extensively in greenhouse.
Product Advantage
1. IP 66 waterproof protection class.
2. Compact size and low noise, easy installation.
3. can be install on the top of greenhouse, and side of the greenhouse(needs creeper).
4. Roll up film tube length up to 360ft ; And 10ft height when OD20mm(Outside Diameter) tube,12.9ft height when OD25mm tube.
5. Setting the limit switches on hoop house roll up ventilation motors.

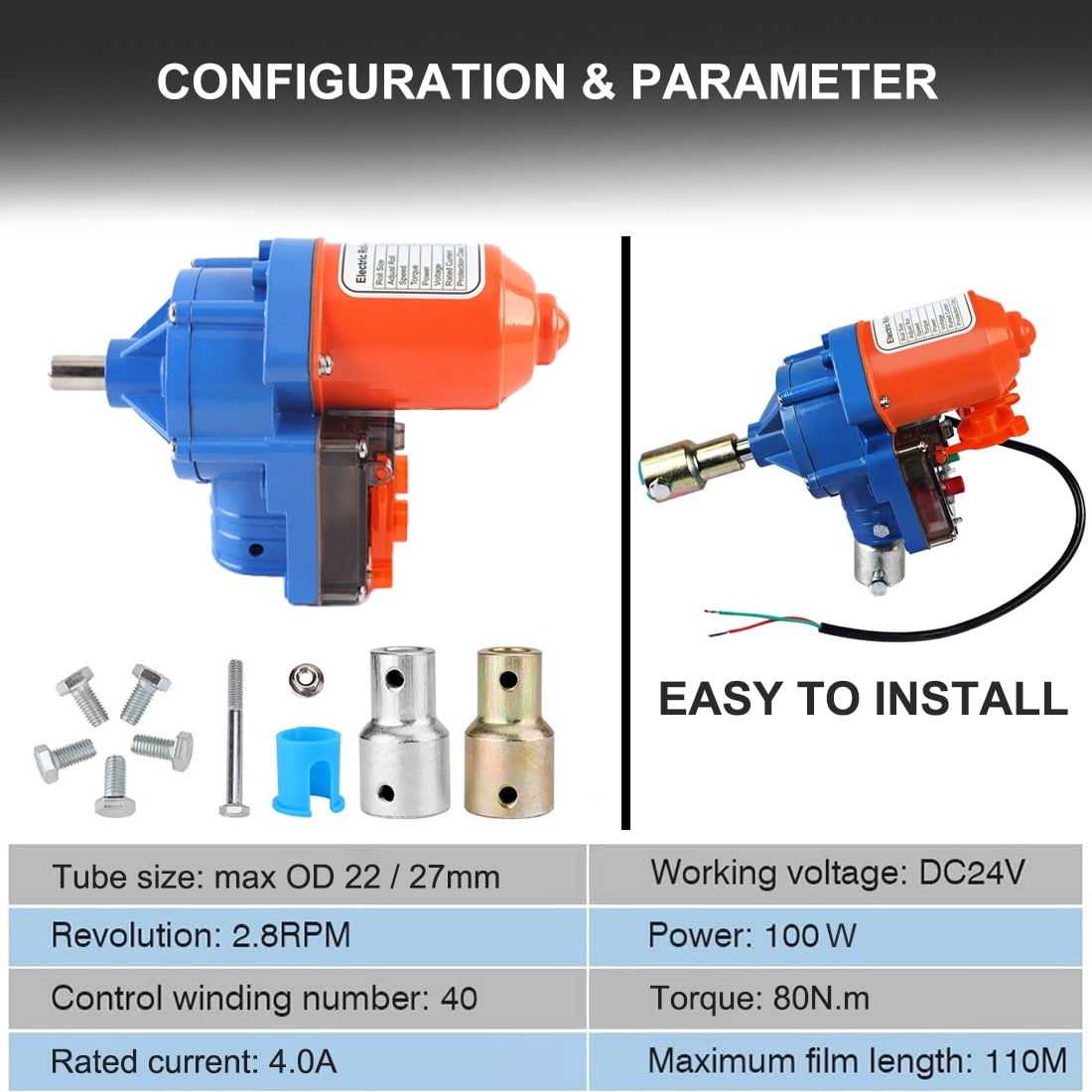

Specifications:
Power: 100 watt
Travel Limit: 40 loops
Voltage: DC 24v
Speed: 2.8rpm
Rated Current: 4.0A
Torque: 80N.m
How to install:
1. Tighten the roll tube with the product by bolts
2. Fix the film on the film tube through the solid film clamp, keeping the film tube in line with the output shaft of the product.
3. After fixing and starting the winder power supply, the film can be opened and closed.
The coiled tube used in this product has 2 specifications, OD20mm, OD25mm:
1. When using OD20mm pipe , it should be used with 'opening sleeve'.
2. The OD25mm pipe can be directly inserted into the 'connection sleeve'.
Material selection:
It's recommended 16AWG cord if within 164ft(50m) from the motors to controller or power.

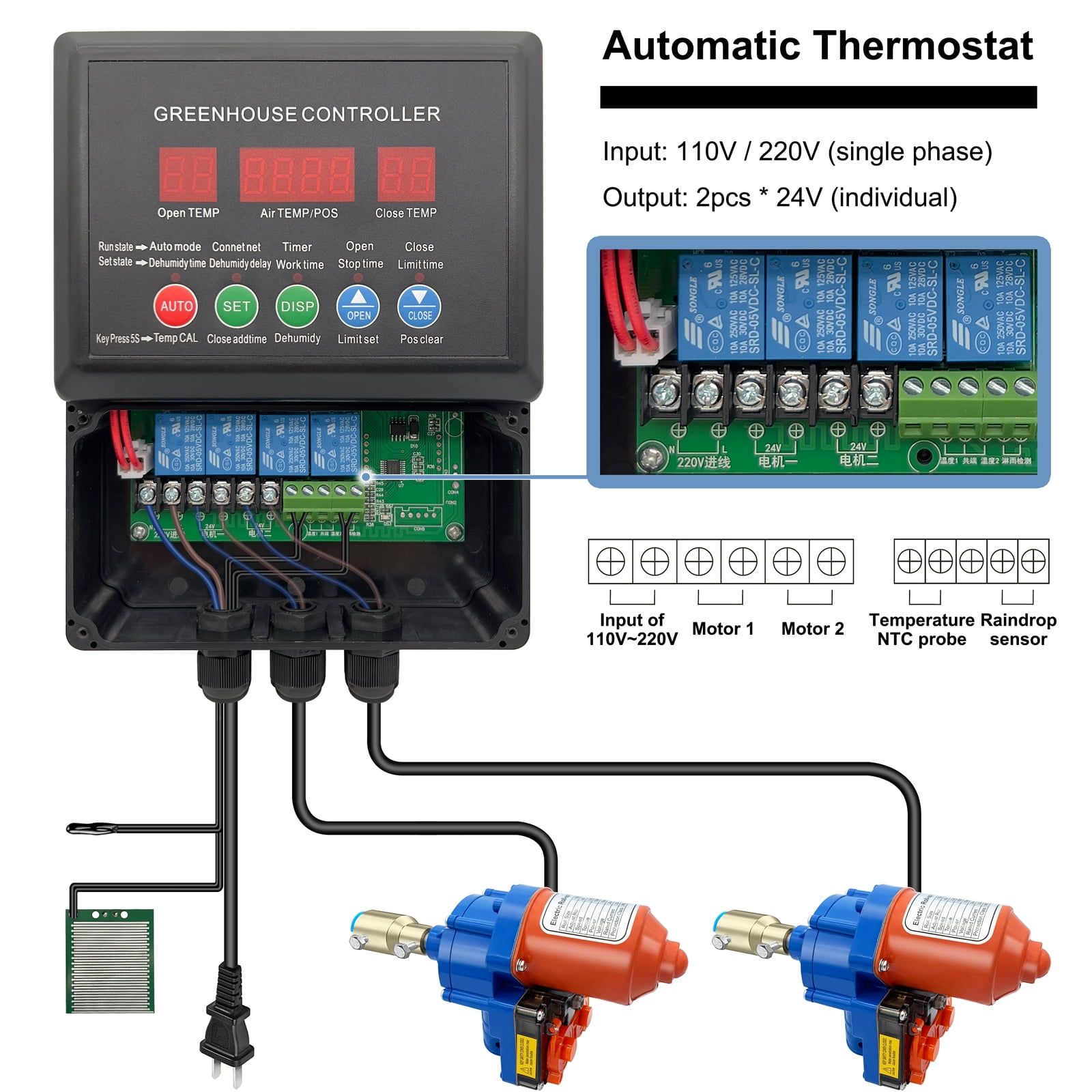

Thermostat controller
Description:
Input voltage: 100~240V
Output voltage: DC24V
Humidity: <85%RH.
Temperature range: -9~70℃.
Control range: -7~50℃.
Use environment: 1-65℃.
Probe parameter: 25℃/10K B=3435.
Package included:
2* Roll up motor
1* Joint box(transformer+controller)
1* 2 prongs plug
1* Raindrop sensor
1* Temperature probe
| Power type |
Corded Electric |
| Control type |
Automatic |
| Brand |
UYGALAXY |
| Color |
black, orange, blue |
| Accessories |
2* Roll up motor, 1* Joint box (transformer+controller), 1* 2 prongs plug, 1* Raindrop sensor, 1* Temperature probe |
| Height |
7.87" |
| Shape |
Square |
| Material |
Metal;Plastic |
| Model |
1 |
| Volts |
110 V |
| Count per pack |
1 |
