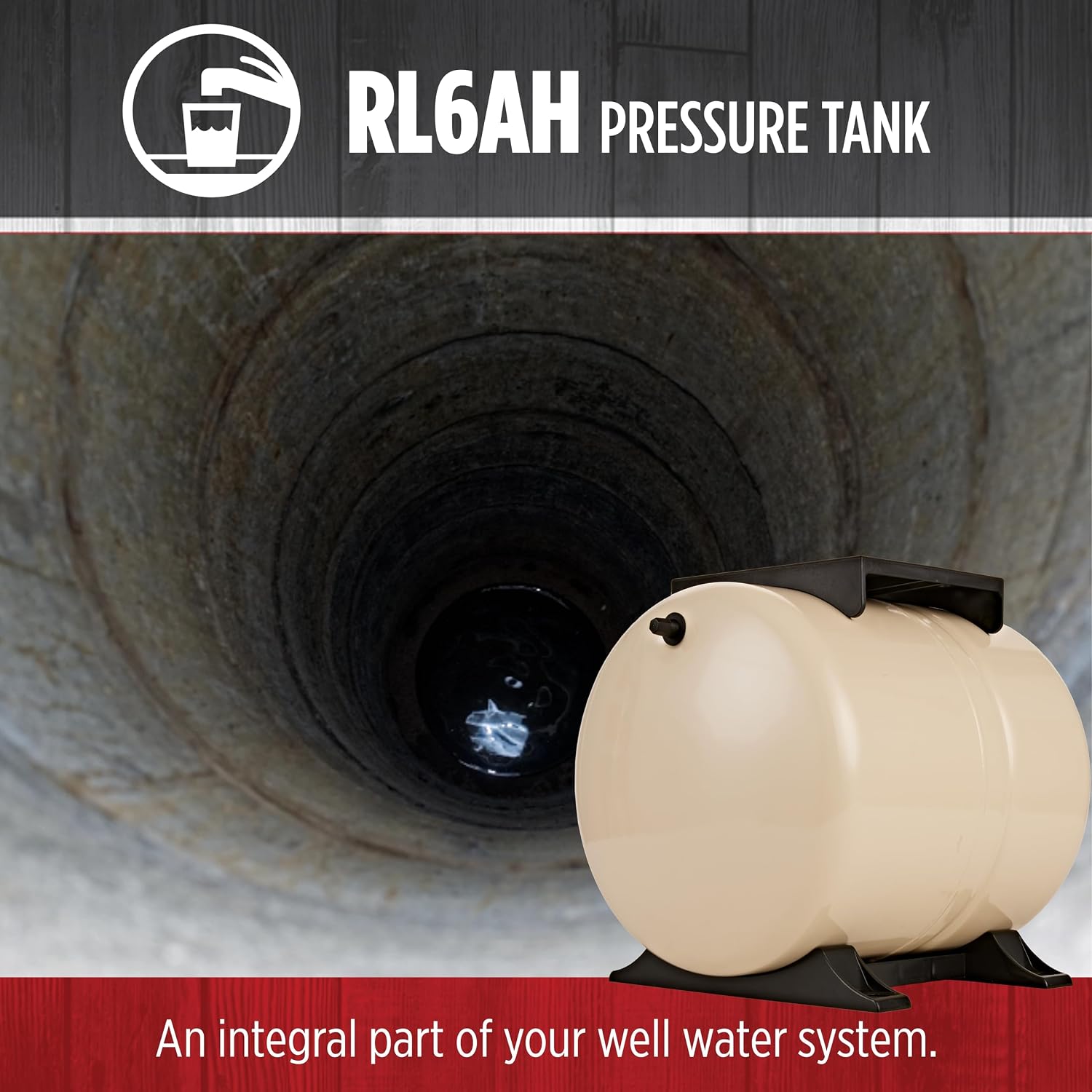

Red Lion RL6AH - 6-Gallon Horizontal Pre-Charged Pressure Tank with Pump Mounting Bracket and Thermoplastic Stand for Well Pumps, 3/4-Inch MNPT System Connection, Almond, 604629

A pressure tank is an essential part of a pressurized water system that provides water pressure. The tank stores water between the diaphragm and the liner. The pressure tank reduces the number of times the pump needs to start significantly increasing the lifespan of your well pump. The tension of the diaphragm maintains the water pressure within the system ensuring proper operation of all water appliances such as a dishwasher and washing machine and provides a robust flow of water for showering. No maintenance is needed. A properly set-up pump and tank will work as a team to deliver water pressure to your home and provide many years of dependable service. The Red Lion RL6AH tank is a 6-gallon horizontal tank with a drawdown of 1.9 gallons at 30/50 PSI. It is designed to handle 1 water fixture at a time. The RL6AH is equipped with a 3/4-inch MNPT threaded straight system connection. The RL6AH is made of heavy-duty 20-gauge cold rolled carbon steel with a 304 stainless steel connector. It has a triple grade almond paint finish. The liner material is FDA grade polypropylene. The unit is rated at a maximum working temperature of 194 degrees F and a maximum working pressure of 150 PSI. Initial set-up: The tank is pre-charged to 20 PSI in order to transport this pump safely and must be filled with air to 2 PSI below the cut-in setting of the pressure switch. For example, a 30/50 system needs 28 PSI of air in the tank. A 40/60 system needs 38 PSI. To fill the pump with air, use a standard bicycle pump and monitor the pressure using a pressure gauge (not included).This unit is equipped with a space saving thermoplastic universal pump mounting plate that allows a jet pump to be attached directly to the tank.This system is NSF/ANSI/CAN 61/CAN 372 tested and certified by WQA.

• APPLICATION: Designed to work with a well pump system to maintain water pressure when the pump is not running; certified for safe, clean, drinking water NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372 approved
• BUILT TO LAST: Heavy-duty 20-gauge steel tank; 304 stainless steel water connection with patented leak safe technology; high performance variable geometry butyl rubber diaphragm; propylene liner
• SET-UP: Tank is pre-charged to 20 PSI for transportation; air pressure in the tank must be topped off with a bicycle pump to 2 PSI below the pressure switch cut-in setting
• PUMP MOUNTING BRACKET AND STAND INCLUDED: mounting bracket allows pump to be installed onto tank; stand lifts tank off of the floor preventing condensation from forming and staining of the floor
• SPECIFICATIONS: 6 gallon horizontal tank; 1.9 gallon drawdown @ 30/50 PSI; handles 2 water fixtures running simultaneously; 3/4" MNPT straight system connection, NSF/ANSI tested/certified by WQA
