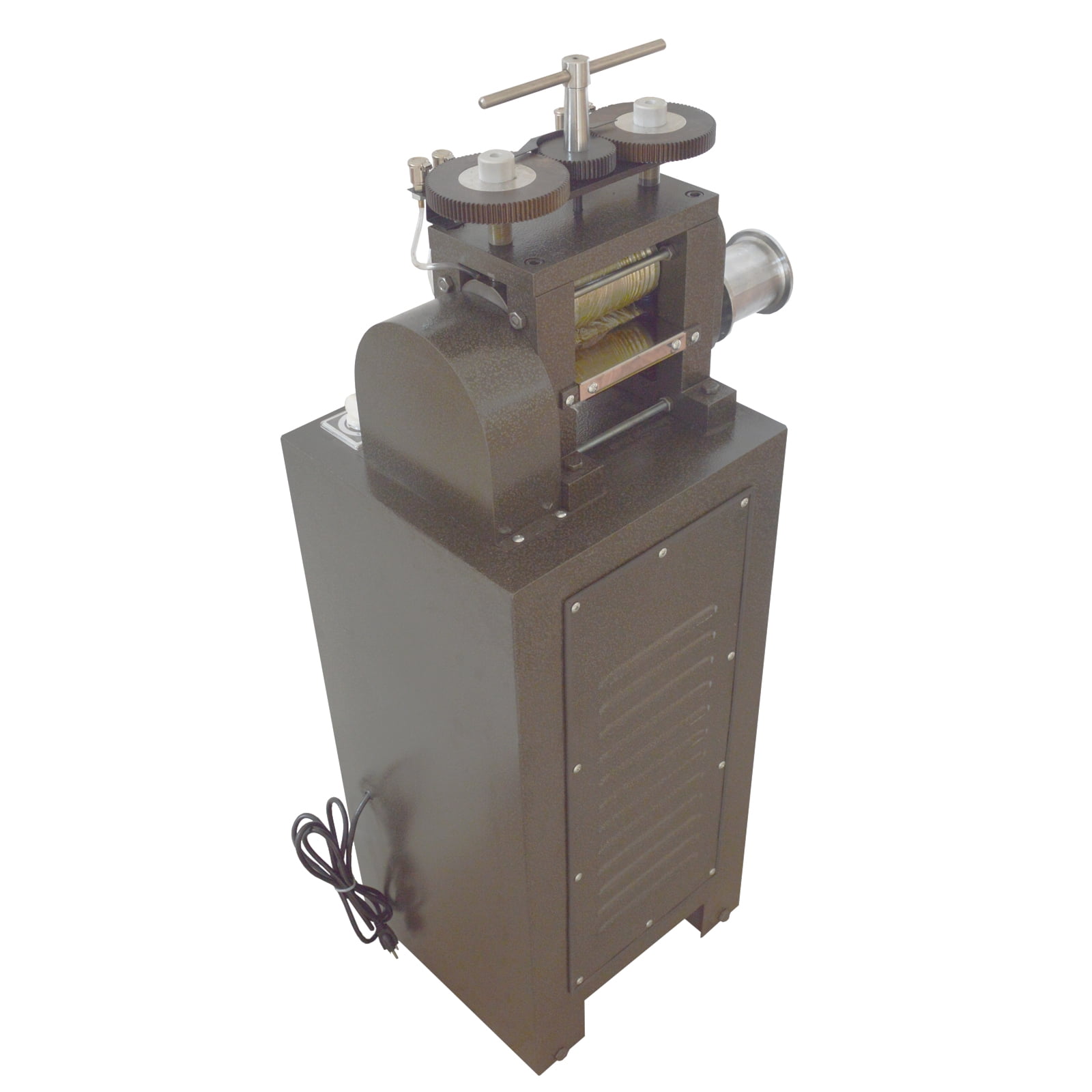

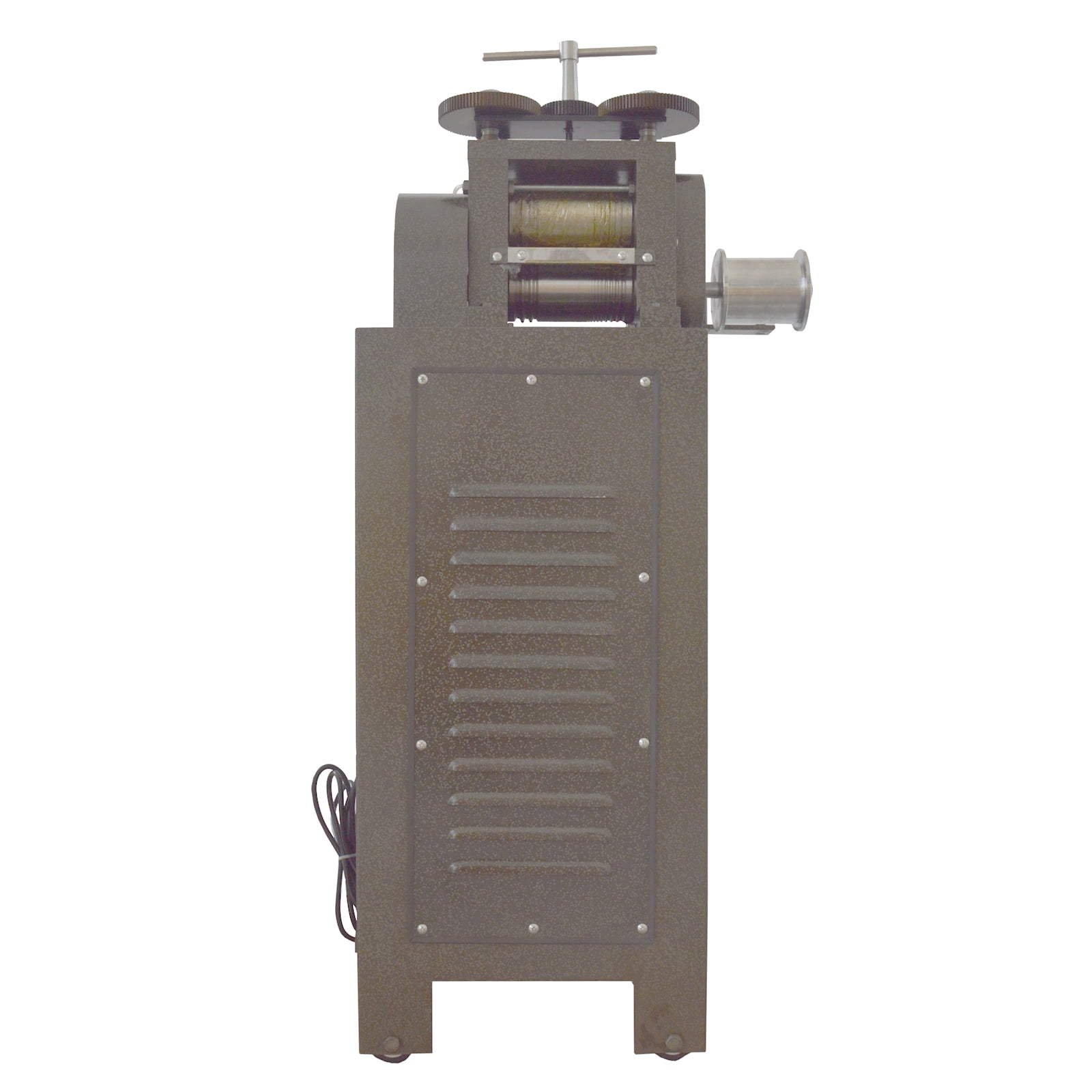

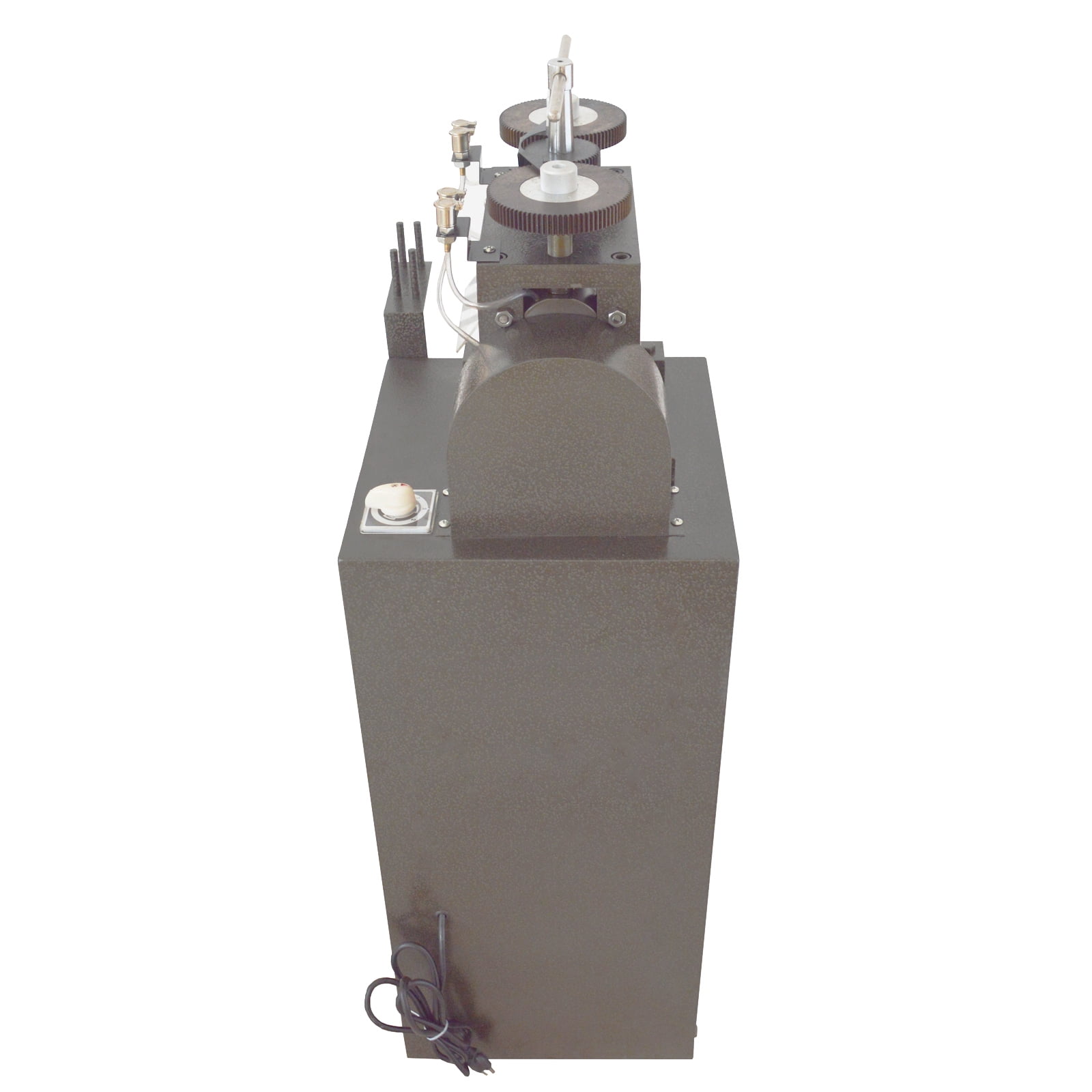

Electric Metal Jewelry Electric Sheet Pressing Layering Machine Vertical 3P

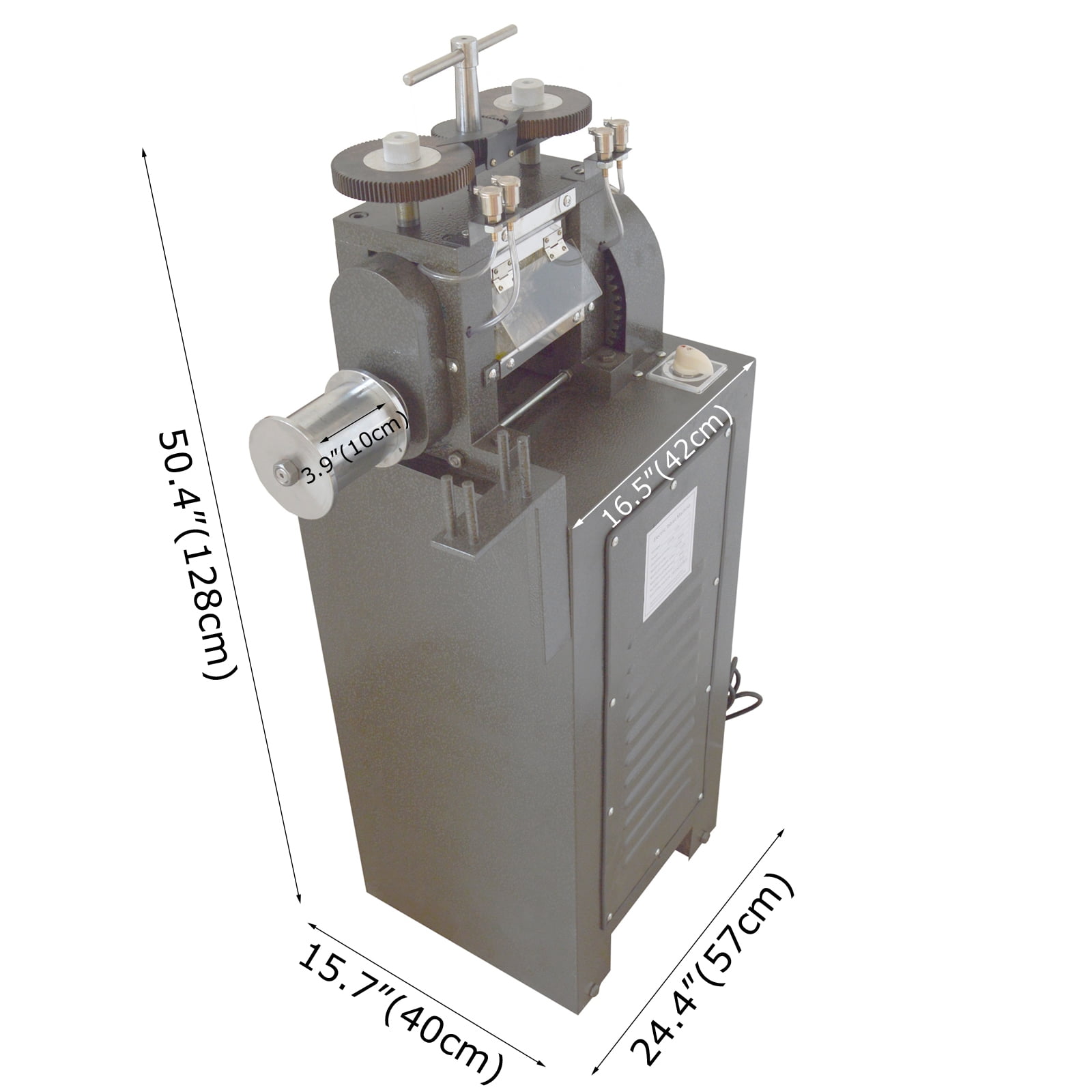

Introduction: <br>This electric flake pressing machine is widely used in metal jewelry processing industry, this flake pressing machine can press platinum, gold, silver, copper, etc soft metal.Rich functions, good workmanship, by the majority of consumers love and praise. <br>Note: <br>If you need other specifications, you can contact us to customize!!! <br> <br>Parameter: <br>Voltage: AC110V/60HZ <br>The Actual Power: 2200W(3HP) <br>Diameter of Roller: 3.46"(88MM) <br>Width of Roller: 6.30"(160MM) <br>Width of Smooth Roller: 2.64"(67MM) <br>Maximum Spacing Between Two Press Rollers: 0.35"(9MM) <br>Numbers of Wire Hoel: 12(1,1.5,2,2.5,3,3.5,4,5,6,7,8,9 Unit: MM) <br>Applications: Platinum, Gold, Karat Gold, Sliver,Copper, Can Be Use for Produce Flake, Wire or Bar. <br>The Distance Between the Rollers Varies with Each Turn of the Dial: 0.04"(1MM) <br>Manner of Packing: New Wooden Cases <br>Size of the Machine: 24.4"*15.7"*50.4"(57CM*40CM*128CM) <br>Gross Weight: 326LB(148KG) <br> <br>Items Included: 056181-EnzS <br>110V 3P Electric Rolling Mill For Jewelry Gold Making Flake Machine <br>Jewelry Gold Making Flake Machine*1 <br>English Instruction Manual*1

• The whole machine is made of high-quality materials, safe and reliable, with high processing accuracy, and can process a variety of materials and specifications (need to be customized).
• The body of the flake pressing machine is coated with electroplating, which can prevent corrosion and rust and make it more beautiful and tidy.

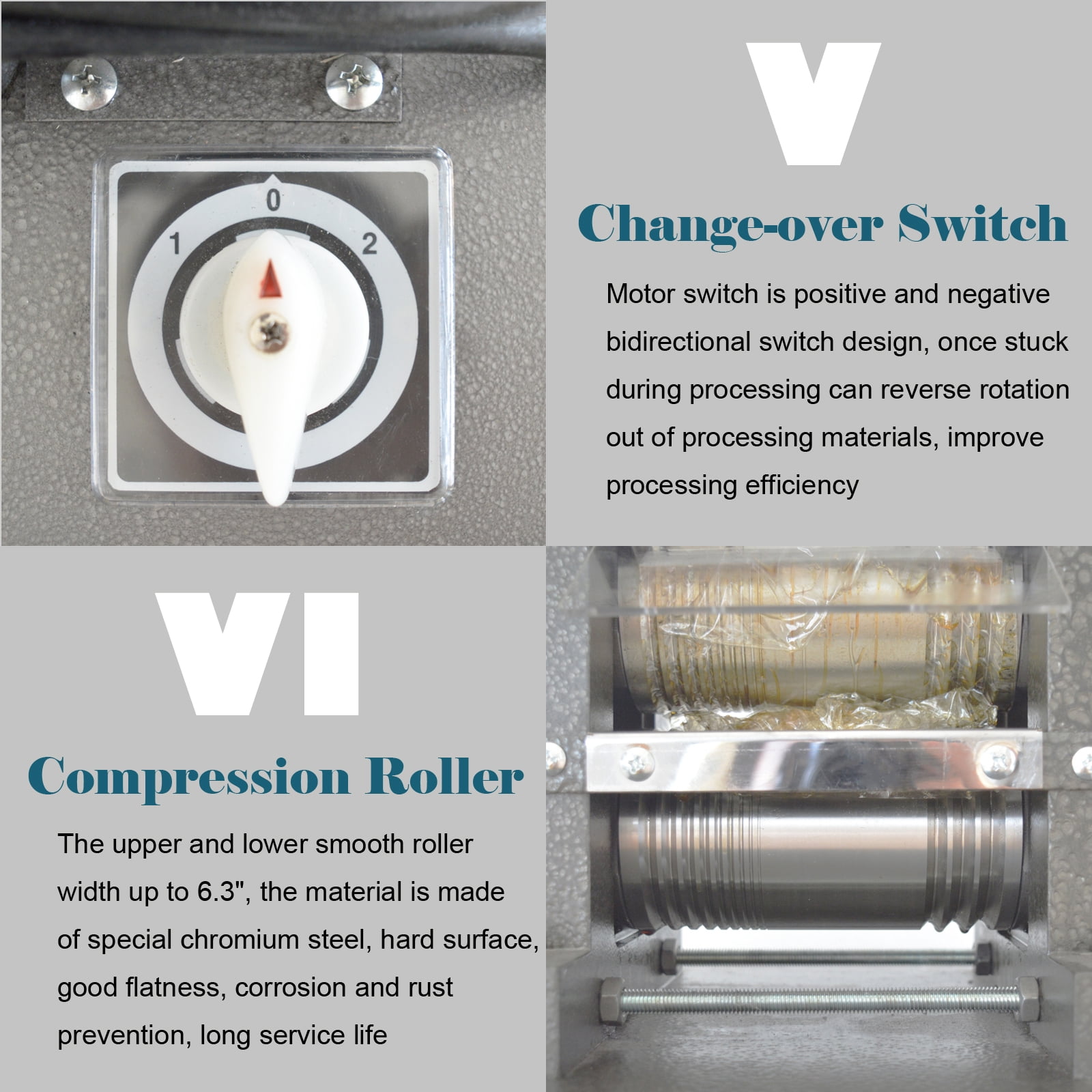

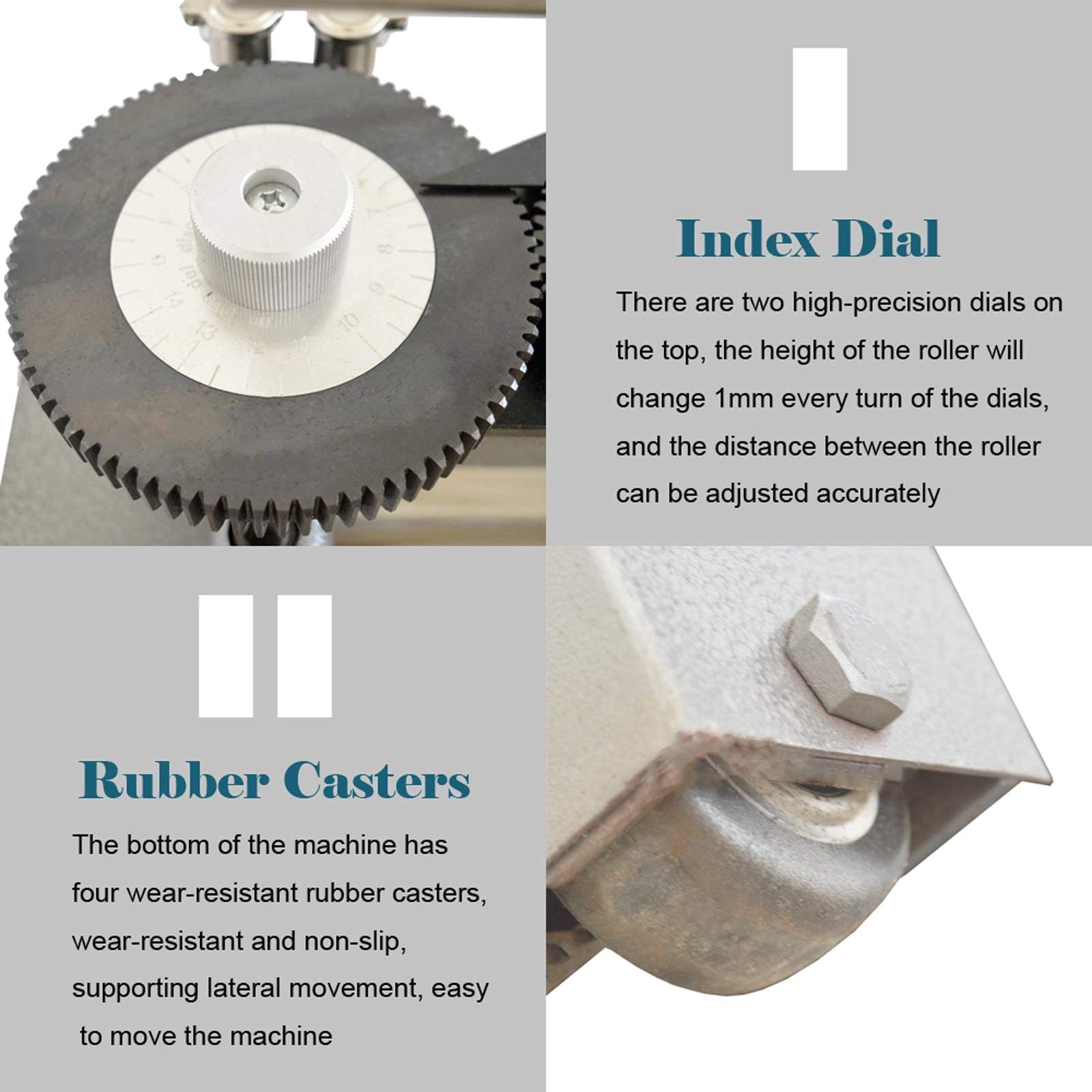

• Equipped with two high-precision adjustment wheels, which can precisely adjust the thickness of processed materials.
• Both front and rear of the machine have cooling holes, which can ensure the continuous work for a long time.

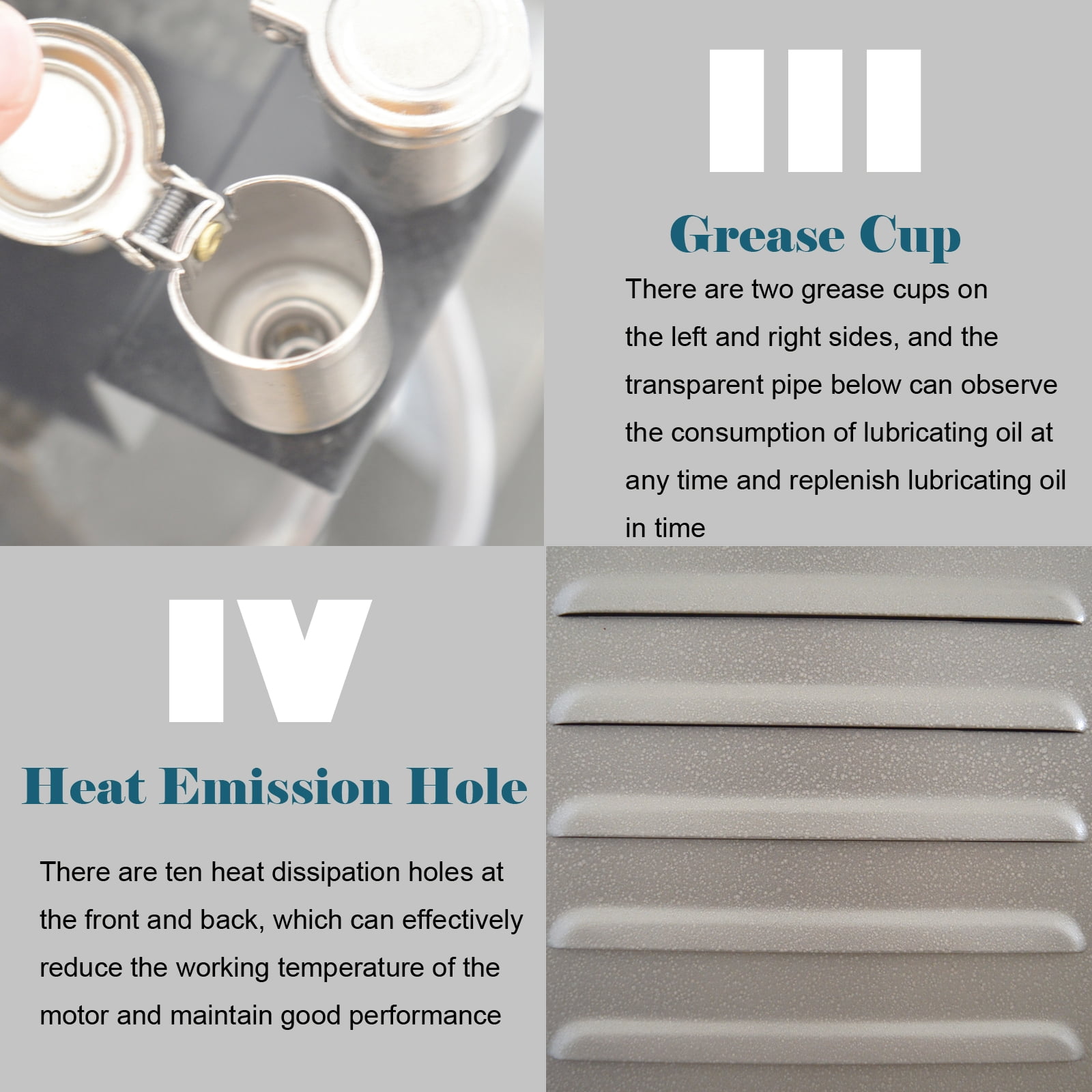

• There are four oiling holes on the top of the machine for maintenance, which can ensure that the equipment can work for a long time without failure, and it is easy to worry and durable.
