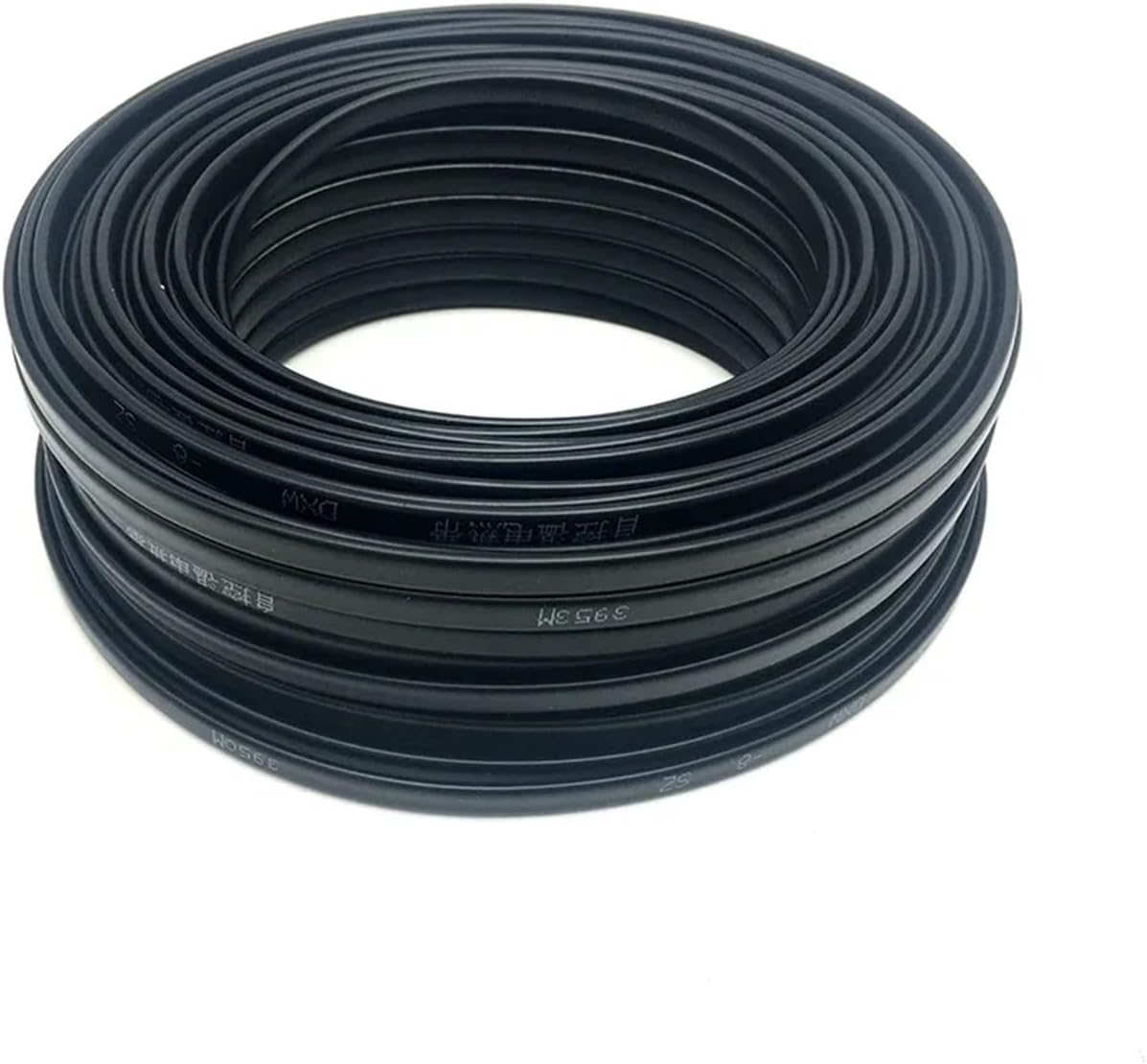

220V Self-Adjusting 1-100m 20W/m Pipeline Antifreeze Heating Cable(3 Meters)

Pipe Heat Cables220V Self-adjusting 1-100m 20W/m Pipeline Antifreeze Heating CableProduct Information:Product name:Housetop Pipe Freeze Protection Self-regulating Heating Cable1.Voltage: 220V 230V 240V2.Power: 20W/m @10 centigrade3.Max working temperature: 65±10% centigrade4.Min installation temperature: -40 centigrade5.Start-up current: less than 0.6 A/m6.Min. bend radius: @20C:25.4mm @-30C:35.0mmStructure: 1. Pure copper conductor2. heating element3. PVC insulation The cable is designed for house water pipe and solar upper water pipe freeze protection requirement in winter, to maintain the water in pipes above 0 centigrade, and do not need acontroller.TheHousetop Pipe Freeze Protection Self-regulating Heating Cable"s advantages:1.With the heat pipe temperature uniformity, not over heating, safe and reliable;2.Save energy;3.Intermittent operation, the temperature started fast;4.Low installation and operation costs;5.Installation and maintenance is simple;6.Easy to automate management;7.No environmental pollotion;8.Duitable for complex pipeline heat;9.Suitable for long-distance device pipeline heat;10.Applise to instrument box antifreeze.TheHousetop Pipe Freeze Protection Self-regulating Heating Cableis very easy to install, suit for metal and plastic water pipes.Installation steps:1.Seal the end of the cable with heat shrinkable tube or other electrical insulatingtape. DO NOT connect the two conductors together!2.Connect the other end with cold wire or (for connecting to the power supply).3.Wrapthe heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).4.Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.5. Connect or into 220~240V. The heat trace system is finished==========Voltage : 81-600V(include600V)Structure : Without modular telephone connectorsUse : Not TelecommunicationHigh-concerned chemical : NoneModel Number : DXW-8is_customized : YesApplication : heatingType : InsulatedConductor Type : StrandedConductor Material : CopperInsulation Material : PVCCertification : Color : BlackVoltage : 220v, 230v, 240vPower : 20 w/mThickness : 3mmWidth : 8mmCore wire size : 7*0.25mmApplication : solar water heater and pipe freeze protectionMax circuit length : 20 meters
